Max Ø 114mm
Straight tubes
2 or 3 stations
Quality and productivity: straight tube, multiple-station finishing up to Ø114mm.

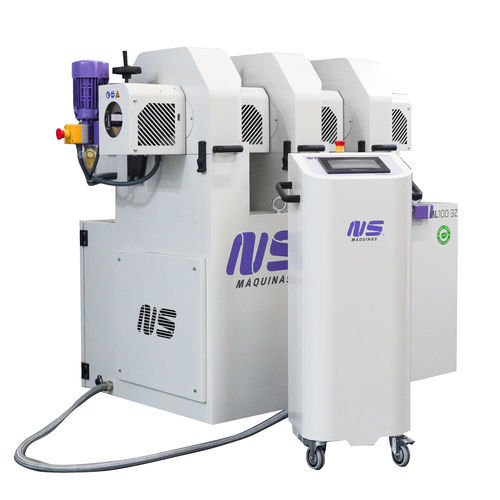

Tube Finishing and Polishing Machine – ML100 Z – is a multi-station finishing machine for straight round tubes.
This round tube polishing machine is equipped with ML planetary system and enables faster finishing work than single station machines.
Automatic work set-up and control of all the information about the tube finishing are done in a mobile panel with an integrated touchscreen. Completely independent finishing stations. Final finish of the round tubes in only one go.
Working capacity (Ø mm) - 10 - 114 -
No. Stations - 2 - 3
Abrasive belt dimensions (mm) - (4x) 50x940 - (6x) 50x940
Abrasive belt speed (m/s) - 10-25 -
Feeding speed (m/m) - 1-5 -
Abrasive belts motor (kW) - (2x) 3 -
Wheel motor (kW) - (2x) 1.5 - (3x) 1.5
Feeding motor (kW) - (3x) 0.12 - (4x) 0.12
Total power (kW) - 9 - 14
Consumption (A) - 27 - 33
Dust extraction connection (Ømm) - (2x) 100 - (3x) 100
Dimensions (mm) - 900x1150x1300 - 950x1450x1300
Weight (kg) - 430 - 600
