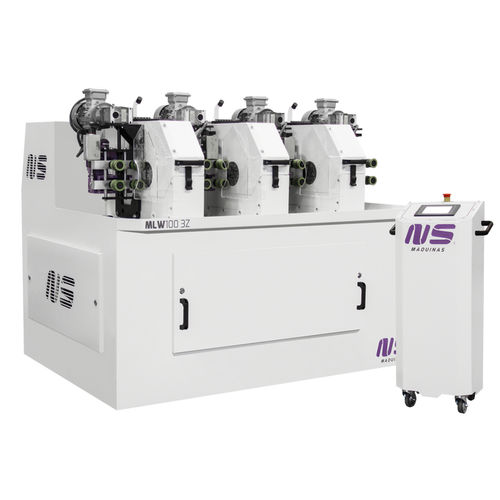

Polishing finishing machine MLW100 Z

for tubesmetalautomatic

Max Ø 114mm Straight tubes 2 up to 4 stations Quality and productivity: straight tube, multi-station wet finishing up to Ø114mm. The MLW100 Z round tube, multi-station wet finishing machine, available with 2 stations (MLW100 2Z), 3 stations (MLW100 3Z) and 4 stations (MLW100 4Z), is equipped with the ML planetary system and enables a faster finishing job than single–station machines.  Automatic work set-up and control of all the information about the tube finishing are done in a mobile panel with an integrated touchscreen. Completely independent finishing stations. Final finish in only one go. The wet-operation system enables faster cooling of the tube as well as the possibility of working different types of metal simultaneously. Working capacity (Ø mm) - 10 - 114 - No. Stations - 2 - 3 Abrasive belt dimensions (mm) - (4x) 50x940 - (6x) 50x940 Abrasive belt speed (m/s) - 10-25 - Feeding speed (m/m) - 1-5 - Abrasive belts motor (kW) - (2x) 3 - (3x) 3 Wheel motor (kW) - (2x) 1.5 - (3x) 1.5 Feeding motor (kW) - (3x) 0.12 - (4x) 0.12 Consumption (A) - 20 - 28 Dimensions (mm) - 1550x1055x1550 - 1850x1900x1500 Weight (kg) - 630 - 960
