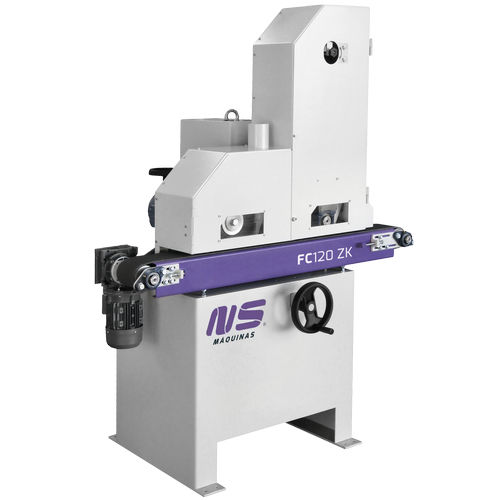

Finishing finishing machine FC120

brushingfor tubesfor bars

Max width 120mm Dry finishing 1-2 stations Ideal for rectangular tubes and bars finishing up to 120mm width. FC120 flat finishing machines were developed thinking in the simplicity of operation whenever flat bars, rectangular tubes or flat elements need to be belt finished or polished. These machines enable the work up to 120mm width with a range of 2 possible combinations of belt heads and brushes. FC120 Z has one abrasive belt unit, while FC120 ZK combines the abrasive belt head with an abrasive brush. Working capacity (Ø mm) - 120x120 - No. belt stations (Z) - 1 No. brush stations (K) - Abrasive belt dimensions (mm) - 120x1850 - Abrasive brush dimensions (mm) - - - 120xØ200 Abrasive belt speed (m/s) - 20 - Abrasive brush speed (m/s) - - - 15 Feeding speed (m/m) - 12 - 12 Abrasive belts motor (kW) - (x1) 3 Abrasive brush motor (kW) - - - (x1) 1.5 Feeding motor (kW) - 0.25 - Consumption (A) - 7 - 12 Dust extraction connection (Ømm) - (1x) 80 - (2x) 80 Dimensions (mm) - 1100x800x1800 - 1450x800x1800 Weight (kg) - 400 - 500
