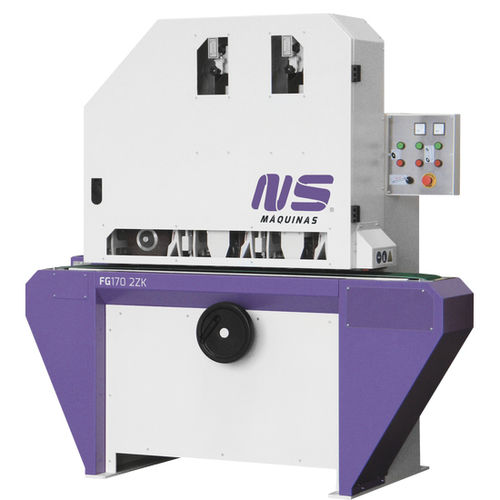

Finishing finishing machine FG170 ZK
brushingpolishingfor tubes

Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes
Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes
Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes - image - 2
Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes - image - 3
Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes - image - 4
Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes - image - 5
Finishing finishing machine - FG170 ZK - NS Máquinas Industriais - brushing / polishing / for tubes - image - 6
Add to favorites
Compare this product


Characteristics

Associated function
finishing, brushing, polishing
Applications
for tubes, for bars
Treated material
metal
Other characteristics
automatic
Power

7.45 kW
(10.13 hp)

Description

Max width 170mm Dry finishing 2 stations Professional finishing of rectangular tubes and bars up to 170mm in width. FG170 flat bar and square tube polishing machines have a solid construction and are ready for intensive work in bars or rectangular tubes. These machines enable the work up to 170mm in width with a combination of one abrasive belt (Z) and an abrasive brush (K). Working capacity (Ø mm) - 170x200 No. belt stations (Z) - 1 No. brush stations (K) - 1 Abrasive belt dimensions (mm) - 170x2000 Abrasive brush dimensions (mm) - 170xØ200 Abrasive belt speed (m/s) - 20 Abrasive brush speed (m/s) - 15 Feeding speed (m/m) - 6+12 Abrasive belts motor per head (kW) - (1x) 4 Abrasive brush motor per head (kW) - (1x) 3 Feeding motor (kW) - 0.45 Consumption (A) - 18 Dust extraction connection per head (Ømm) - (2x) 101.6 Dimensions (mm) - 1700x1000x2000 Weight (kg) - 800
