Max width 220mm
Dry finishing
4 stations (2 sides)
Top and bottom finishing at same time of rectangular tubes and bars up to 220mm width.

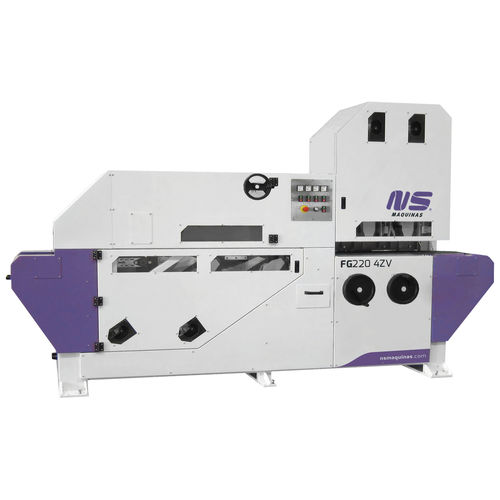

FG220 4ZV flat bar and square tube polishing machines are equipments of higher productivity than standard FG machines.
These machines enable finishing 2 sides at same time (top and bottom) of long square tubes or flat bars can now be done faster and with less handling.
The standard maximum capacity of this machine is 220mm width per 200mm thickness and is capable of working long tubes and bars from 700mm.
Working capacity (Ø mm) - 220x200
No. belt stations (Z) - 4
Abrasive belt dimensions (mm) - 220x2200
Abrasive belt speed (m/s) - 10-25
Feeding speed (m/min) - 4-15
Abrasive belt motor per head (kW) - 5.5
Feeding motor (kW) - (3x) 0.25
Consumption (A) - 44
Dust extraction connection per head (Ømm) - (4x) 100
Dimensions (mm) - 3990x1360x2110
Weight (kg) - 2570
