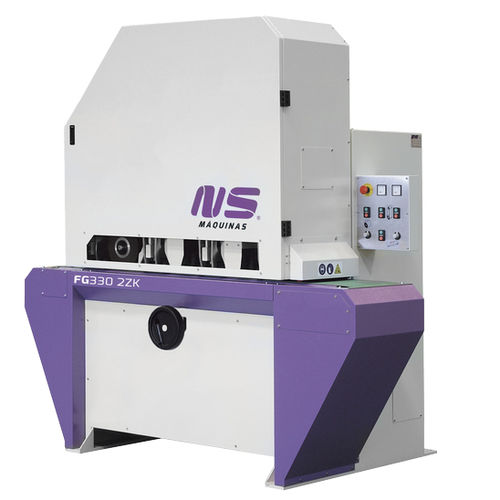

Finishing finishing machine FG330 2ZK

brushingpolishingfor tubes

Max width 330mm Dry finishing 3 stations Large capacity for rectangular tubes and bars finishing up to 330mm width. FG330 flat bar and square tube polishing machines have a solid construction and are ready for intensive work in bars or rectangular tubes. These machines enable the work up to 330mm in width with a combination of 2 abrasive belt heads (Z) and 1 abrasive brush station (K). Working capacity (Ø mm) - 330x200 No. belt stations (Z) - 2 No. brush stations (K) - 1 Abrasive belt dimensions (mm) - 330x2200 Abrasive brush dimensions (mm) - 330xØ200 Abrasive belt speed (m/s) - 20 Abrasive brush speed (m/s) - 15 Feeding speed (m/m) - 6+12 Abrasive belt motor per head (kW) - (x2) 7.5 Abrasive brush motor per head (kW) - (x1) 5.5 Feeding motor (kW) - 0.55 Consumption (A) - 40 Dust extraction connection per head (Ømm) - (3x) 101,6 ext Dimensions (mm) - 2050x1550x2050 Weight (kg) - 1520
