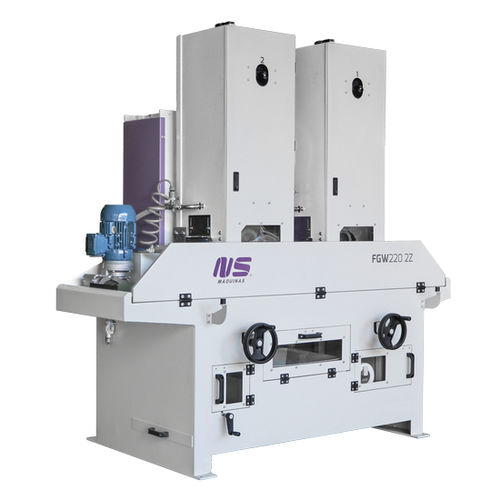

Polishing finishing machine FGW220

finishingfor tubesfor bars

Max width 220mm Wet finishing 2-6 stations Professional wet finishing of rectangular tubes and bars up to 220mm in width. The FGW220 flat surface and square tube polishing machines are specialized equipment designed for surface finishing with water cooling to polish bars, rectangular tubes, and flat surfaces of diverse shapes. These machines enable the work up to 220mm in width with multiple combinations of abrasive belt heads. The wet cooling system reduces the heat on the surface of the material and removes the dust from the polishing area. The dust is filtered from the water which operates in a closed circuit. Working capacity (Ø mm) - 220x200 No. belt stations (Z) - 2 - 3 No. brush stations (K) - 0-2 - Abrasive belt dimensions (mm) - 220x2200 - Abrasive brush dimensions (mm) - 220xØ200 - Abrasive belt speed (m/s) - 20 - Abrasive brush speed (m/s) - 15 - Feeding speed (m/m) - 6+12 - Abrasive belt motor (kW) - (x2) 5.5 - (x3) 5.5 Abrasive brush motor per head (kW) - 4 Feeding motor (kW) - 0.75 - Total power (kW) - 12 - 17.75 Consumption (A) - 25 - 34 Dimensions (mm) - 2100x1350x2100 - 2750x1520x2100 Weight (kg) - 1430 - 2100
