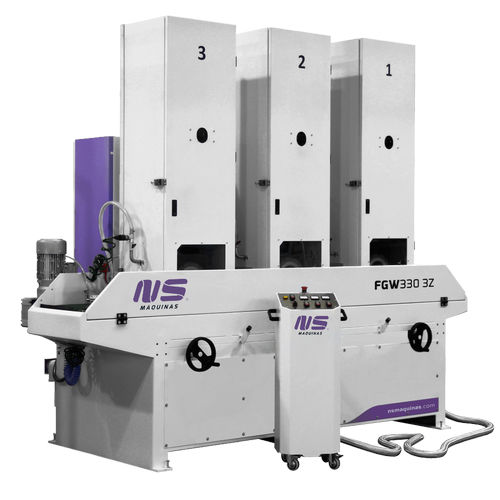

Finishing finishing machine FGW330

polishingfor tubesfor bars

Max width 330mm Wet finishing 2-6 stations Large capacity for rectangular tubes and bars wet finishing up to 330mm in width. The FGW330 flat surface and square tube polishing machines are specialized equipment designed for surface finishing with water cooling to polish bars, rectangular tubes, and flat surfaces of diverse shapes. These machines enable the work up to 330mm in width with multiple combinations of abrasive belt heads. The wet cooling system reduces the heat on the surface of the material and removes the dust from the polishing area. The dust is filtered from the water which operates in a closed circuit. Working capacity (Ø mm) - 330-200 - No. belt stations (Z) - 2 - 3 No. brush stations (K) - 0-2 - Abrasive belt dimensions (mm) - 330x3330 - Abrasive brush dimensions (mm) - 330xØ200 - Abrasive belt speed (m/s) - 20 - Abrasive brush speed (m/s) - 15 - Feeding speed (m/m) - 6+12 - Abrasive belt motor per head (kW) - (x2) 7.5 - (x3) 7.5 Abrasive brush motor (kW) - 5.5 - Feeding motor (kW) - 0.75 - Total power (kW) - 16.5 - 23.65 Consumption (A) - 30 - 46 Dimensions (mm) - 2100x1450x2600 - 2600x1450x2600 Weight (kg) - 1690 - 2500
