2500mm table
1 station
Metal sheets or welded structures weld grinding and finishing.

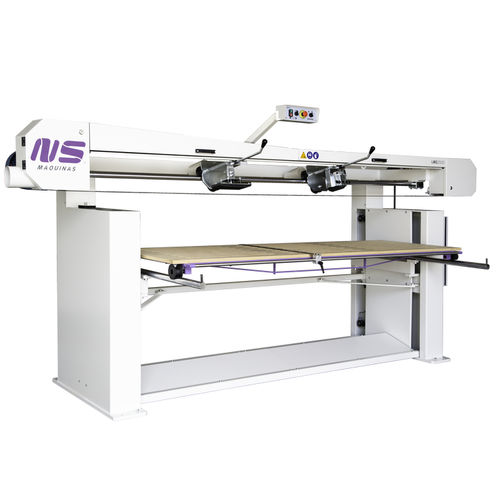

The LMD2500 is a long belt machine with a flexible abrasive belt that enables flat surface finishing, as well as corners or the edges of materials.
The LMD has a 2500x850mm working table which makes it possible to finish large structures.
This machine is ideal for irregular shapes polishing as well as for weld removal. The flexible and adjustable table is useful when, because of the large dimensions of the materials to be finished, you are unable to move the piece.
With the LMD2500 you move the table by motor and use the adaptability of the long belt together with several grinding tools to finish the areas you need.
Working capacity (mm) - 2500x850x700
Abrasive belt dimensions (mm) - 7800x120
Abrasive belt speed (m/s) - 20
Main motor (kW) - 4
Consumption (A) - 9
Dust extraction connection per head (Ø mm) - 120
Dimensions (mm) - 4000x1600x2000
Weight (kg) - 920
