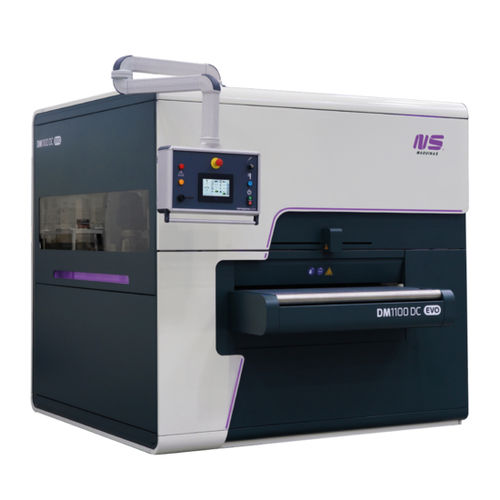

Edge rounding deburring machine DM1100 DC EVO

deburringbeltfor sheet metal

Single-Sided Slag Removal & Edge Rounding Heavy-Duty Automated 1100mm Width DM1100 DC EVO deburrs and edge rounds inside and outside contours of thick steel parts mainly cut by plasma or oxyfuel. DM1100 DC EVO has a large deburring drum for heavy burrs removal and a double cross belt head that performs edge rounding leaving soft and clean edges. This deburring machine features drum fluctuation to cope with metal sheet tolerances and a wide magnetic area so small parts can also be deburred. Working capacity (mm) - 1100x120 No. belt stations (D) - 1 No. cross belt stations (C) - 1 Contact drum specifications - Ø435mm 20SH Abrasive dimensions (mm) - 1150x1520 Drum speed (rpm) - 185-650 Cross belt speed (m/s) - 2-8 Feeding speed (m/min) - 0.5-4.0 Drum motor (kW) - 11 Cross Belt Motor (kW) - (2x) 3 Total power (kW) - 19 Dust extraction connection per head (Ø mm) - (2x) 150 Dimensions (mm) - 2258x2900x2220 Weight (kg) - 4100
