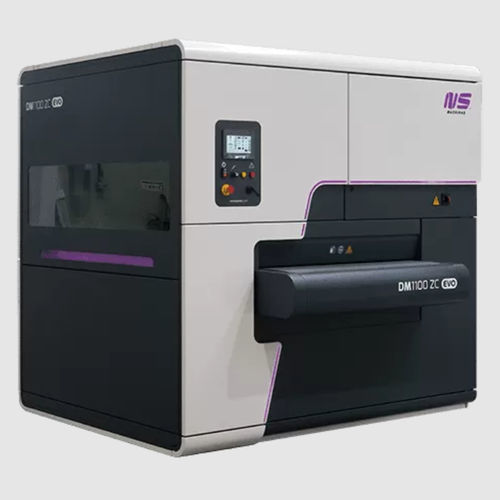

Edge rounding deburring machine DM1100 ZC EVO

shearingpunchingdeburring

Single-Sided Top Line Automated 1100mm Width DM1100 ZC EVO are metal deburring and edge rounding machines for metal sheet and parts cut by punching, shearing, laser or plasma. Removing burrs and creating round edges using cross belts technology is possible on parts up to 1100mm width and on some as small as 50x50mm. Inside and outside contours of stainless steel, steel and aluminum parts cut by laser or other thermal processes are burrs cleaned from the total surface. Working capacity (mm) - 1100x120 No. belt stations (Z) - 1 No. cross belt stations (C) - 1 Abrasive belt dimensions (mm) - 1100x2200 Abrasive belt speed (m/s) - 8-22 Cross belt speed (m/s) - 2-8 Feeding speed (m/m) - 0.9-13 Abrasive belt motor per head (kW) - 18.5 Cross Belt Motor (kW) - (2x) 3 Feeding motor (kW) - 0.37 Total power (kW) - 27 Consumption (A) - 55 Dust extraction connection per head (Ø mm) - (2x) 150 Dimensions (mm) - 2300x2260x2230 Weight (kg) - 3250
