Side Edge Rounding
up to 1100mm
Ideal for burrs removal and double side edge rounding up to 1100mm working width.

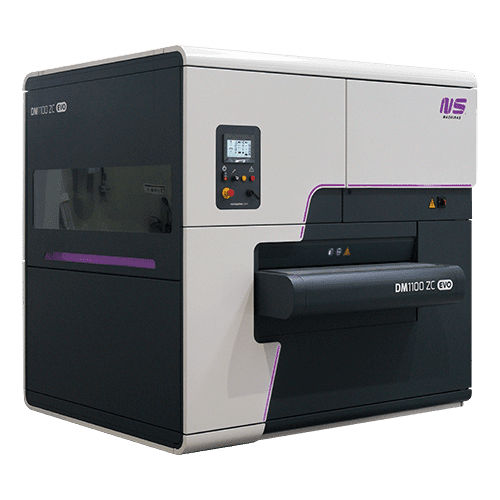

DM1100 Z2C EVO is a metal deburring and edge rounding machine. It deburrs and edge rounds inside and outside contours of stainless steel, steel and aluminum parts cut by laser, punching or shearing. This deburring machine operates from both side of the part, removing sharp edges on parts from 150mm length (double side operation) but also from parts as small as 50x50mm (single side operation). DM1100 Z2C EVO has an upper deburring station (contact roller) and a double cross belt head working both on the upper and lower sides of the part, leaving soft and clean edges on the 2 sides of the cut metal sheet in one single pass.
Working capacity (mm) - 1100x120
No. belt stations (Z) - 1
No. cross belt stations (C) - 2
Abrasive belt dimensions (mm) - 1100x2200
Abrasive belt speed (m/s) - 8-22
Cross belt speed (m/s) - 2-8
Feeding speed (m/m) - 0.6-3.2
Abrasive belt motor per head (kW) - 18.5
Cross Belt Motor (kW) - (2x) 3
Feeding motor (kW) - (3x) 0.18
Total power (kW) - 33
Consumption (A) - 62
Dust extraction connection per head (Ø mm) - 150+185
Dimensions (mm) - 3560x2320x2300
Weight (kg) - 4900
