Grinding finishing machine LMD2500 2Z

polishingindustrialfor sheet metal

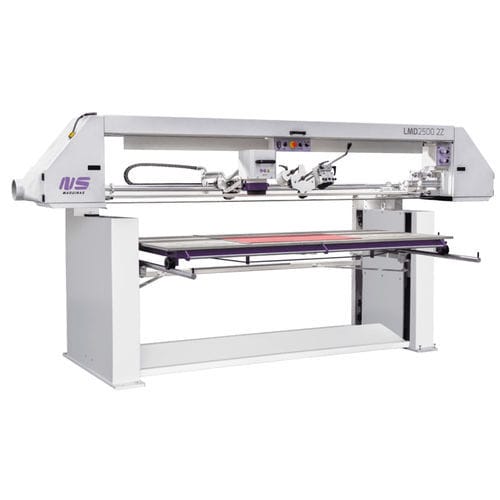

2500mm table 2 abrasive belt stations Twin long belt machine for metal sheets or welded structures weld grinding and finishing. The LMD2500 2Z is a double–belt finishing machine with a flexible abrasive belt that enables flat surface finishing, as well as corners or the edges of materials.  The LMD has a 2500x850mm working table which makes it possible to finish large structures. Having 2 parallel abrasive belts allows weld grinding and belt polishing to be done faster by simply selecting which abrasive belt to work with.  With the LMD2500, you move the table by motor and use the adaptability of the long belt together with several grinding tools to finish the areas you need. Working capacity (Ø mm) - 2500x1100x710 Abrasive belt dimensions (mm) - (2x) 120x8500 Abrasive belt speed (m/s) - 10-30 Main motor (kW) - 4 Consumption (A) - 9 Dust extraction connection per head (Ø mm) - 250 Dimensions (mm) - 4300x2220x2005 Weight (kg) - 1200
