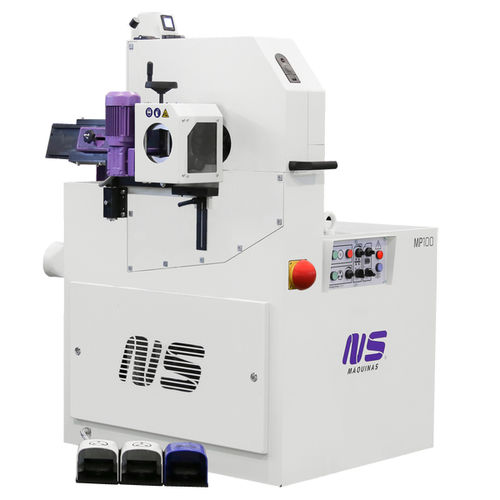

Mirror polishing machine MP100

for metalsfor round tubesautomatic

Max Ø 114mm Straight and curved tubes Round Tubes Straight and curved round tubes mirror polishing up to Ø114 with maximum flexibility and consistency. MP100 round tube machine mirror polishes round tubes, straight or curved. Three planetary polishing wheels rotate around the tube making high pressure and delivering a high gloss mirror polishing, even in curved tubes. The machine features brushes pressure control by foot pedal. This enables the operator to control the applied force during tube polishing operation. The automatic feeding system transports straight tubes safely through the polishing units, enabling a consistent and high mirror polishing quality. Working Capacity (mm) - Ø40-114 Feeding Speed (m/m) - 0-3 Polishing Wheels Speed (m/s) - up to 35m/s Polishing Wheels Dimensions (mm) - (3x) (2x) Ø180-240 Polishing Wheels Motor (kW) - 5,5 Wheel Motor (kW) - 0,37 Consumption (A) - 22 Dimensions (mm) - 1250x1250x1550 Weight approx. (kg) - 420
