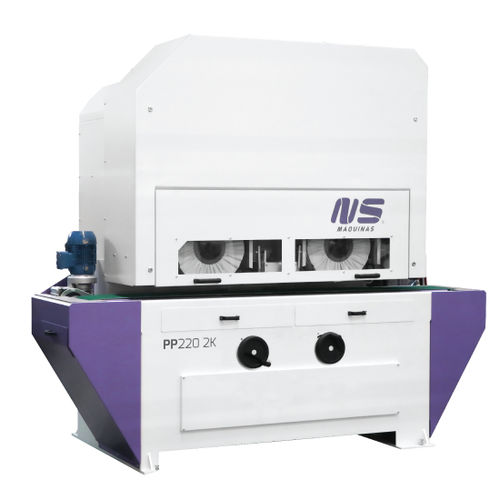

Mirror polishing machine PP220 2K

for metalstubeautomatic

Max 220mm width Rectangular and Square Tubes Flat Bars Rectangular and square tubes and flat bars up to 220mm width. PP220 2K is a rectangular/square tubes and flat bars mirror polishing machine. This machine is capable to work up to 220mm width in a through-feed system. PP220 2K features two polishing wheel stations each one connected to a pressurized tank with liquid compound automatic spray gun. Working Capacity (mm) - 220x200 Feeding Speed (m/min) - 2-8 Polishing Wheels Speed - up to 35m/s Polishing Wheels Dimensions (mm) - (2x) Ø400x220 Polishing Wheels Motors (kW) - (2x) 7.5 Feeding Motor (kW) - (2x) 0.25 Consumption (A) - 80 Dimensions - 2580x1315x2190 Weight (kg) - 2000
