Horizontal drilling and tapping machine TDM100
for tube sheetsfor angled holesfor steel

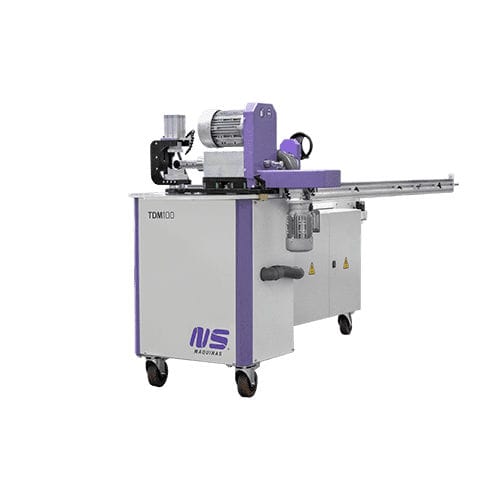

Horizontal drilling and tapping machine - TDM100 - NS Máquinas Industriais - for tube sheets / for angled holes / for steel

Horizontal drilling and tapping machine - TDM100 - NS Máquinas Industriais - for tube sheets / for angled holes / for steel - image - 2

Horizontal drilling and tapping machine - TDM100 - NS Máquinas Industriais - for tube sheets / for angled holes / for steel - image - 3

Horizontal drilling and tapping machine - TDM100 - NS Máquinas Industriais - for tube sheets / for angled holes / for steel - image - 4

Horizontal drilling and tapping machine - TDM100 - NS Máquinas Industriais - for tube sheets / for angled holes / for steel - image - 5

Horizontal drilling and tapping machine - TDM100 - NS Máquinas Industriais - for tube sheets / for angled holes / for steel - image - 6

Add to favorites

Compare this product

Go to the NS Máquinas Industriais website for more information

Characteristics

Structure

horizontal

Applications

for steel, for tube sheets, for angled holes

Other characteristics

high precision, variable speed, M12

Drilling diameter

50 mm
(1.97 in)

Power

2,200 W

Rotational speed

Min.: 550 rpm
(3,455.8 rad.min-1)

Max.: 5,000 rpm
(31,415.9 rad.min-1)

Weight

490 kg
(1,080 lb)

Description

Max 114mm Semi-automatic 1 station Inclined tube drilling, flowdrilling and tapping machine. TDM100 is a complete machine for inclined drilling, flow drilling and tapping of round, square and rectangular tubes and bars. Suitable for the handrail and furniture industries, as well as other drilling operations for stainless steel tubular components The single-station unit is completely adjustable for different angle drilling operations. Its tools are quickly and easily interchangeable. The cooling system ensures an effortless drilling operation and extends the lifetime of the tools. The operator has all the tools within reach inside the cabinet below the drilling station. Working capacity (Ø mm) - Ø114 100x100 110x15 Max. Length (mm) - 3000 Drilling speed (mm/s) - 1.2-20
