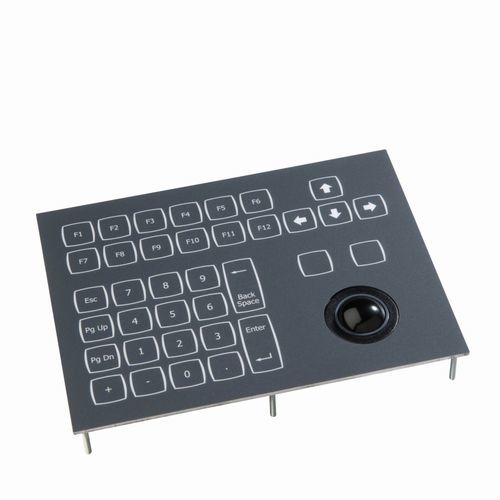

Panel-mount keyboard KSTC36F1 series

with mechanical keys36-keywith trackball

IP65 sealed keyboard Well defined key layout, tactile feel switches With 25mm industrial IP65 sealed trackball 36 keys, numeric, function and control short travel keys Tactile feel switches with 2.55 N operating force Fast and comfortable access of the most important machine commands This numpad and function keyboard is built around 36 short travel, tactile feel switches - numeric, function and control keys - and a compact 25mm trackball. The condensed but well defined key layout combined with the use of a compact trackball enables a fast and comfortable access to the most important machine commands and an accurate control of the cursor. Typical applications are navigation control, general machine control, public access terminals, security systems, .. and any applications requiring only a limited number of key functions with easy, fast and comfortable access and control. ·36 short travel keys with tactile feel, 2.55N operating force ·Integrated 25 mm industrial grade trackball with removable ball Panel mount version ·Front of panel mounting by eight M3 mounting studs ·Added silicon sponge seal for perfect sealing into the user's panel ·Dimensions / weight : 182 x 135 x 25 mm / 0,3 kg Desktop version ·The keyboard is mounted in a very stylish and robust ABS housing ·Dimensions / weight : 212 x 165 x 27 mm / 0,7 kg Keys : 36 tactile short travel keys Pointing Device : 25 mm trackball Output : 1,6 m. PS/2 or USB cable(s) Power requirements : Directly from PS/2 or USB port Operating temp. : 0°C to +60°C Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant
