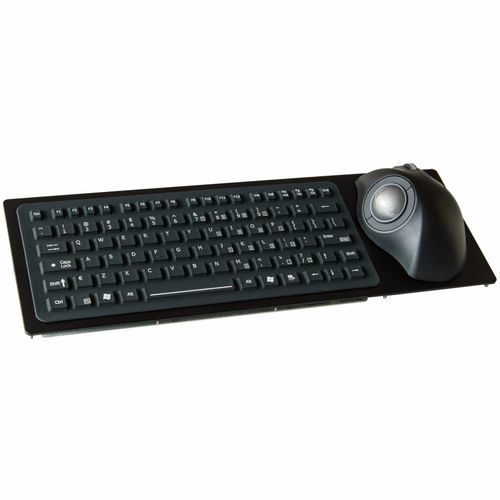

Panel-mount keyboard RKTE85-MC1 series

desktopwith mechanical keys85-key

Certificate of conformity fully compliant with IEC60945 Compact layout, 85 full travel keys Version with or without backlighting Dimmable backlighting at 8 levels by two dedicated keys (FN key + arrow up/down) Low power LED's warrant for a long life 38 mm waterproof ergonomic trackball with hall-effect scroll wheel Removable ball for easy cleaning Integrated left, middle and right switch functionality No external power supply necessary, keyboardport power sufficient Compact thickness Sealing : IP67 sealed frontal Desktop version : ABS enclosure Keys : 85 rubber keys Pointing Device : 38 mm ergonomic trackball Output : 1,6 m. USB cable Power requirements : Directly from USB port Operating temp. : 0°C to +70°C Storage temp. range : -40°C to +85°C Switch force : 300 grams +- 100 grams Switch stroke : 1,5 mm Lifetime switches : 1 million actuations TRACKBALL Ball size/material : Ø38.1mm (1.5") / Epoxy resin Tracking force : 20-40 grams – PTFE seal Ball load : 100N (10Kg) max. downward pressure for 2 minutes @ 20°C Resolvable ball speed : 30 IPS (inches per second) Tracking engine : Infra-red optical navigation technology Removable ring : PC/ABS, black COMPASS SAFE DISTANCE : 0,6 m SCROLL WHEEL Wheel diameter : Ø25mm Wheel material : PC/ABS Wheel colour : Grey Encoding technology : Hall effect Magnet strength : N42 Detent-scrolling force : 30 grams nominal Switch actuation force : 275 ± 125 grams force
