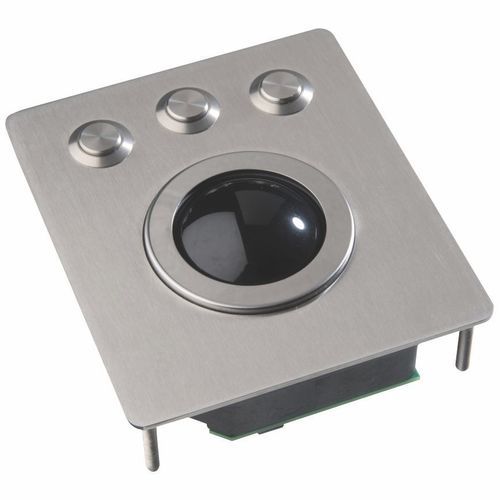

Mechanical trackball TBS50F2

panel-mount2 inch (50 mm)vandal-proof

This TBS50F2 is a highly ruggedized trackball and designed for harsh industrial applications, kiosk consoles, navigation controls, etc… This stainless steel 50 mm trackball unit features a robust, vandalproof construction and all metal look : the carrier plate made of brushed stainless steel, a stainless steel ring protecting the trackball sealing and three anti-vandal stainless steel and IP65 sealed switches. The 50mm trackball unit itself has a black phenolic resin ball for highest resistance to hostile impacts and to scratches and with a sealing grade of IP65 static. General trackball specifications Ball diameter : 50,8 mm (2'') Ball material : phenolic resin Dimensions : 100 x 116 x 40 mm Weight : 0,6 kg / 1 kg Lifetime : >= 2 million ball revolutions Tracking force : nom. 50 grams Cable : 1 shielded, straight 1,6 m long Operating temp. range : -10°C to +60°C Storage temp. range : -25°C to +80°C Push button switches Mechanical life : 1 mil. cycles min Contacts : gold plated Travel : 1,3mm Operating force : 4N typ Operating temperature : -20°C to +60°C Trackball connectivity These combo PS/2 & USB trackball units have a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
