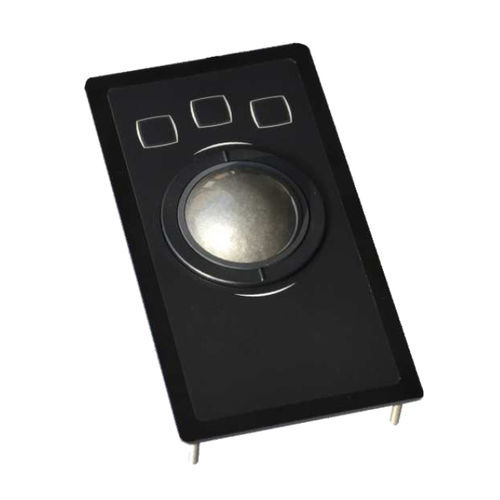

Laser trackball TSX50C1-0BT1-MC3

panel-mount2 inch (50 mm)waterproof

IEC60945 marine certificate Black polyester front plate Short travel mouse switches Self-adjusting PTFE seal Accurate pointing control Easy cleaning Incl. alu carrier plate, electronics and cable. Intended for front panel mounting into users’ cabinet or panel with a minimum of required space and mounting depth. Operation of the trackerball is possible at all angles, from horizontal to vertical mounting position. The electronic parts on the backside are protected by a metal cover. General technical specifications Ball material : polyester Tracking force : nom. 50 grams Keys : short travel switches, tactile feel switches with 0,3 mm travel and 2,55 N operating force Front layer : Black polyester front layer with embossed keys, scratch and chemical resistant Carrier plate : black brushed anodized aluminium Lifetime : >= 2 million ball revolutions Cable : shielded, straight 1,6 m long Operating temperature : -10°C to +60°C Storage temperature : -25°C to +80°C Switches : tactile, 0,3 mm travel Dimensions / weight : 90 x 165,8 x 59,7 mm / 0,6 kg Compass safe distance : 0,5 m Connectivity These combo PS/2 & USB trackball units have a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
