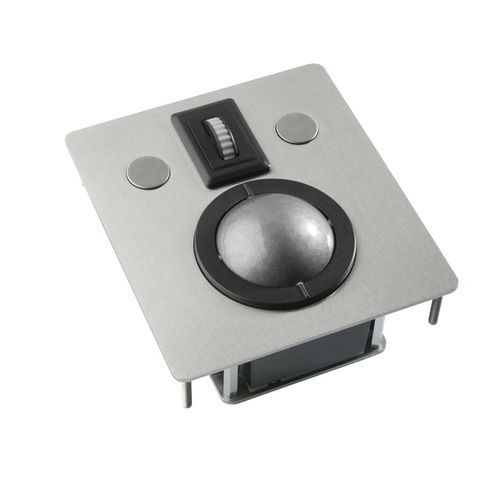

Laser trackball LTSX50-M series

panel-mount2 inch (50 mm)waterproof

Fully compliant with IEC60945 Scroll wheel with click function Removable top for easy cleaning of bal compartment General technical specifications Ball diameter : 50,8 mm (2'') Ball material : polyester Dimensions : 116 x 130 x 50 mm Weight : 0,6 kg Lifetime trackballs : >= 2 million ball revolutions Lifetime scroll wheel : 1 million operations Lifetime switches : 3 million operations Tracking force : nom. 50 grams Cable : 1 shielded, straight 1,6 m long Operating temperatur : -10°C to +60°C Storage temperature : -25°C to +80°C Added silicone sponge gasket A silicone sponge gasket is included with the module to ensure adequate sealing into the customers' panel or console and a cover plate on the rear side protects the components. Connectivity Combo PS/2 & USB trackball units are supplied with a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
