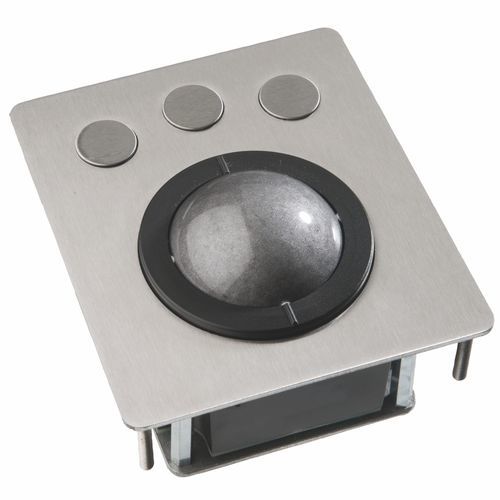

Optical trackball TSX50 series

panel-mount2 inch (50 mm)stainless steel

Removable top for easy cleaning of bal compartment 8 versions in blank or black coated stainless steel Front panel mounting (holes or studs) 8 standard panel mount versions of the TSX50 range Front panel mount version with studs Front panel mount with holes for countersunk M4 screws (not included). Choice of switches : IP65 pushbutton switches or IP68 short travel switches. Choice of carrier plate : Blank stainless steel carrier or matt blackened stainless steel carrier. Technical specifications Carrier plate : brushed stainless steel Ball material : polyester Lifetime : >= 2 million ball revolutions Tracking force : nom. 50 grams Cable : 1 shielded, straight 1,6 m long Operating temperature range : -10°C to +60°C Storage temperature range : -25°C to +80°C Dimensions / weight : 100 x 116 x 50 mm / 0,6 kg Connectivity These combo PS/2 & USB trackball units have a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
