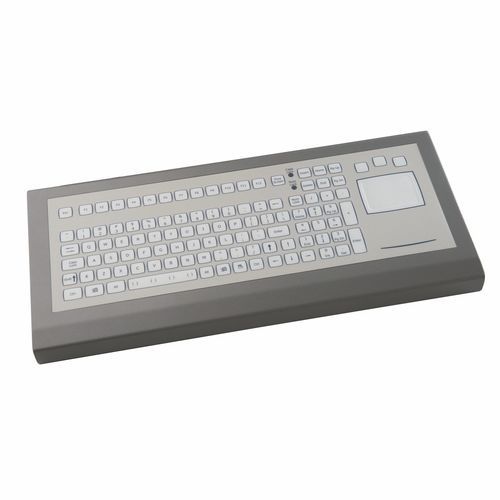

IP65 keyboard KSTP105 series

panel-mountcapacitivemembrane

IP65 sealed keyboard Integrated capacitive touchpad 105 short travel switches with low pressure Positive tactile feedback Stainless steel housing General technical specifications Sealing : IP65 sealed Keys : 105 short travel keys, 0,3 mm with low pressure of 2.55N for increased speed typing Pointing Device : touchpad Operating temperature : 0°C to +60°C Output : USB or PS/2 Front layer : polyester, chemical resistant Carrier plate : aluminium Supply voltage : +5V +/- 5% (via keyboard port) Supply current : 60mA max. Added silicon sponge seal : for perfect sealing into the user's panel Panel mount : Fourtheen M3-threaded studs Keyboard connectivity The PS/2 keyboards are supplied with two 1,6 m long shielded straight cable ended with 6 pin mini DIN plugs. The USB versions are supplied with one 1,6m long shielded straight cable ended by a USB type A connector.
