Panel-mount pointing device SPS55F8

industrialstainless steelwaterproof

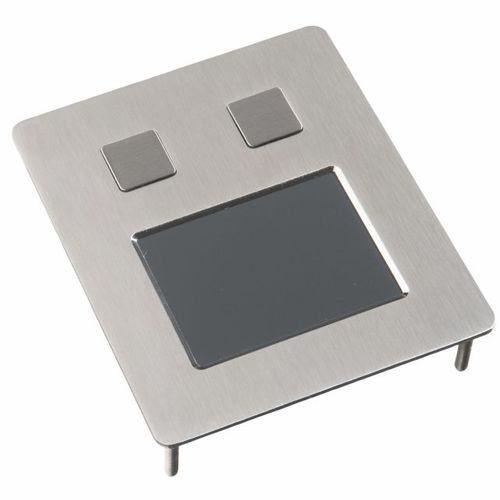

The SPS55F8 features a capacitive type touchpad mounted into a stainless steel carrier plate, equipped with two stainless steel switches. The Solid State Touchpad and the switches are IP68 grade. The silicone sponge panel-seal, which is part of the supply, provides waterproof IP68 sealing for the total unit when properly mounted into the customers' panel. The touchpad uses the "Field Distortion Technology" to sense the presence of the finger. The device is not pressure sensitive, a light touch is sufficient, tracking your fingertip precisely. Because of the capacitive working principle, the unit might not work with thicker gloves. The unit is designed for harsh industrial applications, it will operate at all mounting angles and it does not require cleaning or maintenance. Therefore, it is very well suited for a wide range of applications, indoor and outdoor, such as public access- and information kiosks or terminals, navigation control, processing industry and many others. General technical specifications Sensing area : 55 x 39 mm Tracking speed : max 250 mm/sec Switches : stainless steel, short travel 0,5 mm operating force 4N typ. Cable : shielded, straight 1,6 m long Resolution : 100 - 300 dpi Operating temperature : -10°C to +60°C Storage temperature : -20°C to +70°C Connectivity These combo PS/2 & USB touchpad units have a 1,6 meter long shielded straight cable ended by a USB type A plug. An adaptor to PS/2 is added. No special device driver is needed, use standard available drivers of your operating system.
