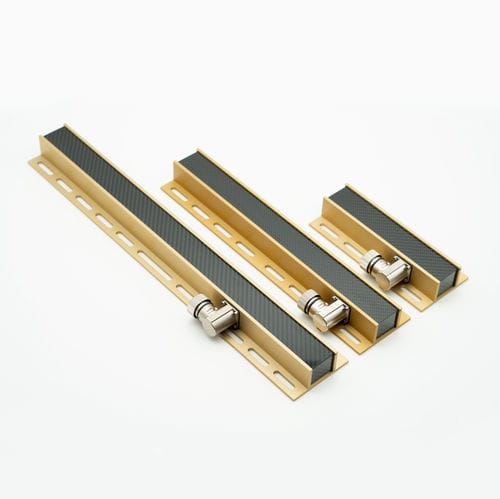

Research and development camera SEZ T3 series

for scientific applicationsfor pipesfor the automotive industry

The digital linescan x-ray cameras of the SEZ series have been developed by NTB especially for the operation in digital x-ray inspection. The x-ray camera is the result of an intensive research in the field of digital x-ray technology. A continuous further development of the SEZ-T3 and the SEZ-W line suits the cameras for the use in most different applications and requirements. A robust construction for operations from 20 kV up to 450 kV guarantees a long life time and resistance against mechanical strain. The slit collimators of the cameras make them highly insensitive to scattered rays. The hardware pixelbinning (=> electronic grouping of neighboring pixels to one pixel) enables a variable resolution from 83 µm to 1.3 mm. As the pixelbinning is freely adjustable, it is possible to realize applications which require a very high resolution as well as applications with very high scanning speeds (up to 80m/min) with one and the same camera system. The high dynamic range (12 bit A/D conversion) supplies x-ray images with up to 4096 greylevels. The x-ray images can be evaluated, processed, archived, transmitted or used for documentations. It is possible to integrate the camera system into third-party software by the use of the supplied software library (DLL). Thereby, custom specific solutions up to the fully automatic acquisition and evaluation of the x-ray images become possible. The digital x-ray cameras are highly economic and future-oriented: There are no overhead costs for film, chemicals and film processing. The archiving of all data is space saving, as many x-ray images can be saved on one small data medium (hard disk / CD / DVD).
