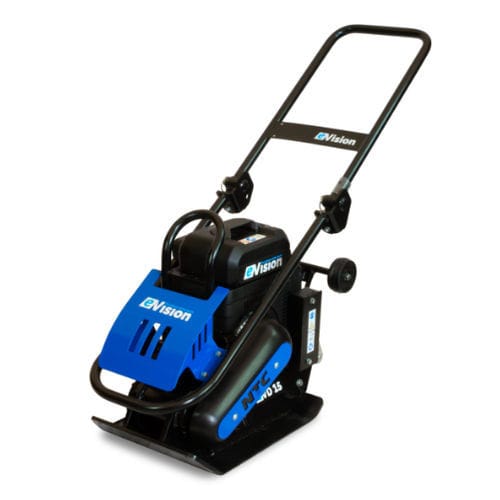

Forward travel vibratory plate e.VD 15
Add to favorites
Compare this product
Characteristics
- Type
- forward travel
- Weight
90 kg
(198.42 lb)
Description
e.Vision forward vibratory plates offers comparable performance as their brothers with a combustion engines.
Vibratory plates e.Vision are designed to be precise, powerful, exhaust emission free, maintenance free and all this is possible thanks to the electric engine powered by rechargable battery.
Operational parameters
Weight w/o battery
90
kg
Plate width
400
mm
Centrifugal force
15
kN
Frequency
100
Hz
Max. speed
25
m/min
Engine
Maker and type
Honda
GXE 2.0H
Fuel
Electricity
Net power
1,6
kW
Environmental impact
Emission free
Battery
Maker and type
Honda
Li-ion
Voltage
72
W
Capacity
720 (10)
Wh (Ah)
Weight
6,4
kg
Operational fluids
Water tank capacity
12
l
Working dimensions
Lenght
1110
mm
Width
400
mm
Height
1000
mm
Transport dimensions
Lenght
750
mm
Width
400
mm
Height
920
mm
