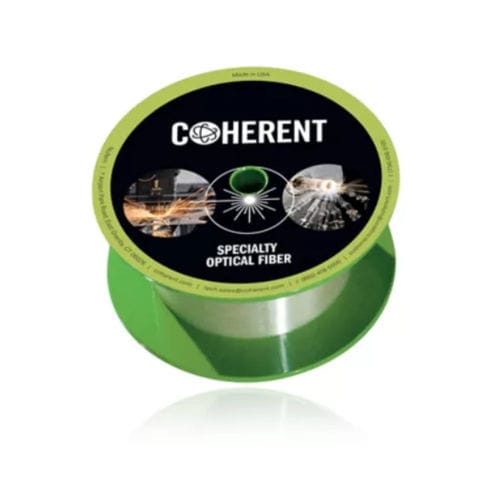

Robust optical cable LMA-TDF-25P/400-HE

single-mode

True LMA fiber featuring a unique low NA ( 130% quantum efficiency) when pumped at 793 nm. This extraordinary efficiency is due to composition enabled cross relaxation of Thulium ions in the core. The high TM concentration allows short device lengths and high pump conversion efficiency while the low NA (few moded) core design is ideal for applications where robust single-mode beam quality is critical. The high NA (0.46) 400 µm pump cladding waveguide allows for efficient coupling of high pump powers. The large core diameter (25 µm) maintains a large field diameter and short device length, thereby minimizing non-linear effects such as SBS and SRS. This product requires a purchase of a minimum quantity of : 2
