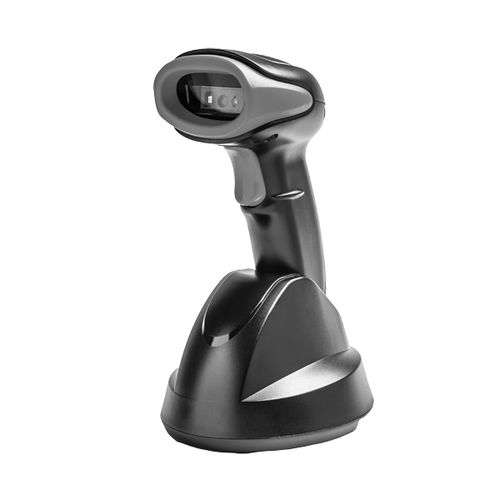

Hand barcode reader BD-6530BT

2DPOSRS-232

• 640(H) x 480 (V) Pixels • Flexible communication options • Wireless charge cradle • Reading most of 1D and 2D barcodes • Resolution:1D 4 mil, 2D 6.67mil • Low power consumption The BD-6530BT is 2D wireless scanner which is able to communicate to the devices such as laptops, tablet and mobile phone devices. It has connected up to 80M work range. It combines energy efficiency and high performance with the unprecedented versatility. The BD-6530BT has a secure range of up to 80 meters and an aggressive scan performance on most of 1D barcodes and 2D barcodes. The BD-6530BT’s high performance, ergonomic design combines simple reliability with the flexibility and convenience of a wireless scanner. It’s perfect for using in retail, document/billing process and banking /finance environment, health care, medical industry and warehousing solution. General Interface: USB-KB / USB-COM / RS-232 / HID-USB Barcode supported (1D): All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32/ Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBar 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 DataBar Limited, GS1 Composite Component A/B/C Barcode supported (2D): PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode Communication RF standard: BT 4.2 Working Distance: 80M (Open environment) Optical Optical sensor: 640(H) x 480 (V) Pixels Light source: Red LED (610nm) / White LED 6000 - 6500K Resolution: 4 mil (Code 39), 6.67 mil (DataMatrix) Depth of Field: 55 - 170 mm (13Mil) PCS: 30% Indicator: Beeper, LED and Vibration Electrical Voltage: DC 3.3V ± 5% Scanning Currents: <350 mA Standby Currents: <100 mA
