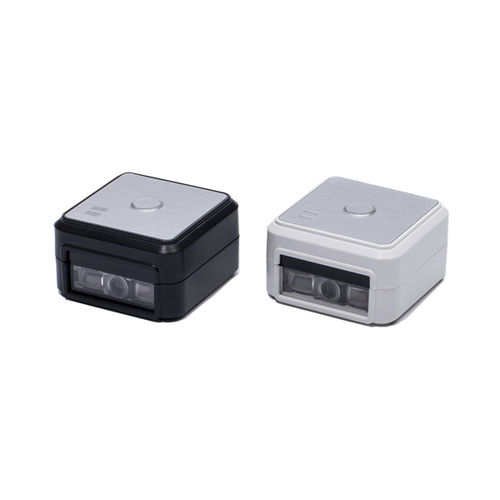

Fixed barcode reader FX-20D-90

2DOEMindustrial

• Optical sensor: 640 (H) x 480 (V) pixels • Compact size 35 x 35.5 x 20.2mm • Resolution 4 mil • Reading OCR fonts NUMA FX-20D-90 fixed area imager is engineered to decode most of 1D, PDF and 2D codes. It's excellent for reading e-barcodes and easy to integrate into POS or Kiosk system. It provides wide range of applications: such as retail stores connect to point-of-sale terminals to use e-coupons, mobile loyalty cards promoting sales. Factory can integrate on conveyor for production tracking or integrate on kiosk for payment usage. It can also read passport OCR code for duty free usage. General Interface: USB-HID / USB-COM / RS-232 Barcode supported (1D): JAN/UPC/EAN including add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN-ISSN-ISMN, Matrix 2 of 5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey Barcode supported (2D): Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite Codes, Data Matrix (ECC200), DotCode, Passport MRZ (OCRB), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR Code Barcode supported (Postal Code): Chinese Post, Intelligent Mail Barcode, Korean Postal Authority Code, POSTNET Optical Optical sensor: 640 (H) x 480 (V) pixel Light source: Aiming: Green LED, Illumination: white LED Resolution: 4 mil Depth of Field: Code 39 52mm-126mm (5mil) QR Code 30mm - 234mm (15mil) PCS: 90% Indicator: Beeper and LED Electrical Voltage: + 5V ± 10% Scanning currents: <300 mA Standby currents : <26 mA Environment Operating temperature: 0 °C to 40 °C / 32 °F to 104 °F
