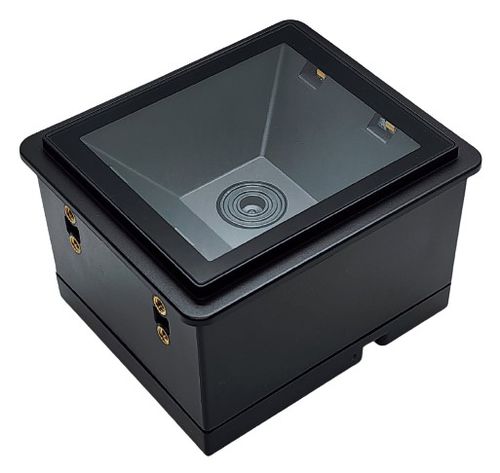

Stationary barcode scanner DT-80

1D2Dfor retailers

• Easy to scan e-barcodes • Desktop or integrated in Kiosk • Durable and elegant design • Multi-interface solution NUMA DT-80 is desktop area imager engineered to decode most of 1D, PDF and 2D codes. It’s excellent for reading smart phone QR codes and barcodes and also perfect performance for reading poorly printed codes on paper. It provides wide range of applications: such as retail stores connect to point-of-sale terminals to use mobile coupons, mobile loyalty cards promoting sales. Restaurants can accept mobile coupons at the register. Hotels can use electronic cards stored in guest’s smart phones. Theaters, theme parks, stadiums, museums can scan mobile tickets for entrance. General Interface: USB-KB, USB-COM, RS-232 Barcodes Supported (1D): All UPC/EAN/JAN, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR, Interleaved 2 of 5, MSI, Code 93, GS1 DataBAR 14, GS1 DataBar Expanded, GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C Barcodes Supported (2D): PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Aztec, Maxicode Optical Optical System: 648 (H) x 488 (V) pixels Light Source: White LED Resolution: 6 mil (Code 39), 8.34 mil (DataMatrix) Scan Rate: 60FPS Field of View: Horizontal: 65°; Vertical: 49° PCS: 30% Indicator: Beeper Electrical Voltage: DC 5V Scanning Current: 180 mA Standby Current: 120 mA Environment Operating Temperature: 0℃ to 40℃ (32℉ to 104℉) Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) Operating Humidity: 10% - 95% RH (Non-condensing) Storage Humidity: 10% - 85% RH (Non-condensing) Drop: 1.8 M drops Light Level: 100,000 lux Physical Weight: 153g w/cable
