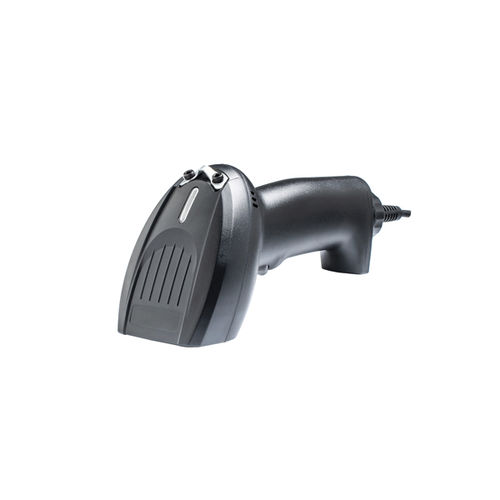

Handheld barcode scanner BD-9500HD

1D2Dfor warehouse

BD-9500HD delivers aggressive scan performance on linear barcodes and area imaging codes. It’s ergonomic design and available with multiple interface. BD-9500HD combines high resolution megapixel sensor for light industrial, retail, documents / billing process and banking / finance environment, health care, medical industry. It’s perfect to read 1D 3mil barcodes and 2D 5 mil barcodes. It is certificated by IP 54 and high performance to read on electronic display such as smart phone, tablet. General Interface: USB-KB / USB-COM / RS-232 Barcodes supported (1D): UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode, Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B / C Barcodes supported (2D): PDF 417, Micro PDF 417, QR Code, Micro QR Code, Dara Matrix , Aztec, Maxi Code, Dot Code Optical Optical System: 1280 x 800 pixels Light Source: 610nm Red LED / White LED 6000- 6,500K Resolution: 3 mil (Code 39), 5 mil (QR Code) Depth of Field: 30mm - 300mm (EAN-13 3 mil) Scan rate: 60 fps PCS: 30% Electrical Voltage: DC 5V Scanning Currents: 380 mA Environment Operating temperature: 0℃ to 40℃ (32℉ to 104℉ ) Storage temperature: -40℃ to 70℃ (-40℉ to 158℉ ) Relative Humidity: 10% - 95% Shock Resistance: 1.8m drops Physical Weight: 140g (excluding cable) Dimensions: 161.73mm (L) x 65.5mm (W) x 84mm (H) Housing Material: ABS plastic Cable: Length: 180cm / USB Type: A or C, RS-232 Warranty: 1 year Certificate: CE / FCC / BSMI Sealing: IP 54
