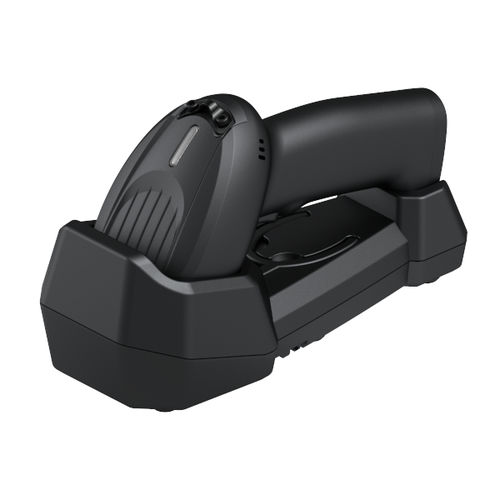

Bluetooth barcode reader BD-9541BT ESD

hand2Dindustrial

• Static-safe • BT 4.2 • 1280 x 960 pixels, rolling shutter • IP 54 sealing BD-9541BT ESD delivers aggressive scan performance on linear barcodes and area imaging codes. It's ergonomic design and available with USB-KB, USB-COM, RS-232 and HID-USB interface. The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther then other standard range scanners. BD-9541BT ESD is designed specifically to satisfy the stringent requirements of clean-rooms and static-safe manufacturing environments. It's integrated with BT 4.2 module which can connect with device directly or transmit data via cradle. The designed cradle is a battery charger, a holder and a data receiver. General Cradle Interface: USB-KB / USB-COM / RS-232 / HID-USB SE-4107 2D ENGINE Barcodes supported (1D): All UPC/EAN/JAN, EAN 128 Code, Code 39, Code 39 full ASCII, Code 32 / Italian Pharmacode, Code 128, CODABAR/NW 7, Interleaved 2 of 5,Industrial 2 of 5, Matrix 2 of 5, MSI, Telepen, Code 93, Code 11, China Postal, GS1 DataBAR, GS1 DataBAR Expanded, GS 1DataBar Limited. Barcodes supported (2D): PDF417, Micro PDF417, QR Code, Micro QR Code, GS1 QR Code, Aztec Code, Data Matrix, GS1 Data Matrix, Maxi Code, Grid Matrix, Han Xin, Postal Codes Communication RF Standard: BT 4.2 Working Distance: 80M (Open environment) Optical Sensor Resolution :1280 x 960 pixels, rolling shutter Light Source: Aiming LED: Green LED , Illumination: 1 warm white LED Resolution: 5 mil (Code 39), 6.67mil (PDF417) Focal Distance: From front of engine: 6 in./15.25cm Scan Rate: 60 fps PCS: 25% Indicator: Beeper, LED, Vibration
