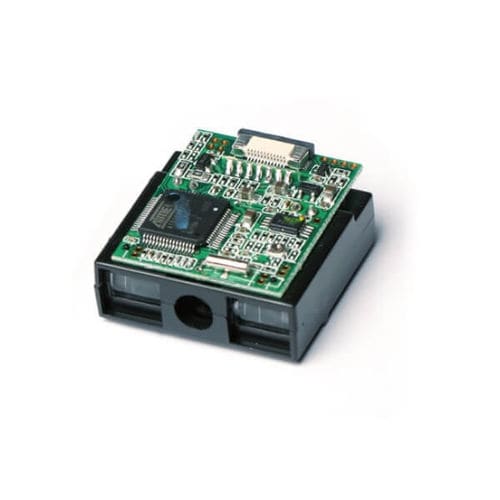

Barcode scan engine N1

• CPU ARM7 • Optical sensor: 2500 Pixel • Support 3 mil resolution • Scan rate 270 scans per second • Depth of Field: 5mm - 220mm N1 is compact & lightweight scan engine equipped with ARM processor. The user-friendly N1 is a fully packaged CCD reader, offering easy integration and several configurations to meet a variety of need. Advanced CCD technology provides reliable reading performance for small, damaged or poorly printed codes. N1 is ideal scan engine for OEM design engineers seeking a dependable and inexpensive embedded bar code scanning solution. Optical Light Source: 660nm visble LED Optical sensor: 2500 pixels Toshiba CCD sensor Resolution: 3 mil Depth of Field: 35 – 320mm PCS: 30% or more Connector: 12 pin ZIF connector Interfaces: USB HID / RS-232 (TTL)/ KBW Electrical Voltage: + 5V DC ± 5% Power: 120mA @ 5VDC (typ.) Standby currents: 20 ~ 30 mA Environment Operating temperature: 0 °C to 55 °C Storage temperature: -20 °C to 60 °C Humidity: 10% ~90% RH (non-condensing) Ambient Light : Works in any lighting condfitfions, from 0 to 10,000 lux Physical Weight: 10g Dimensions: 29mm (L) x 31mm (W) x 17.5mm (H) Housing Material: ABS plastic
