Fixed DPM and barcode reader DT-90

2Dindustrialcompact

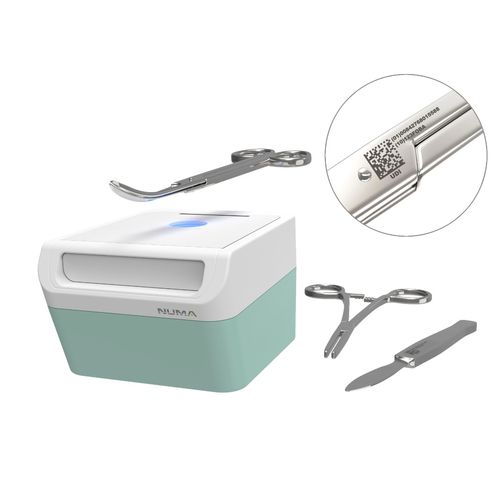

The DT-90 reading system was specifically developed by NUMA to quickly and reliably identify surgical instruments or cutting tools by reading their DataMatrix codes. Identification and traceability of the products are necessary according to the UDI identificiation. The DT-90 can easily read codes on any variety of brushed, matt or mirror finished surfaces even codes that are worn down after many washings. Regardless of the code size, it can reliably read markings on highly curved surfaces or cylinders with small radii. Interface - USB-KB, USB-COM Barcodes Supported (2D) - DataMatrix, QR Code Optical System - 640 (H) x 480 (V) pixels Light Source - Blue LED Resolution - 1.8mm x 1.8mm DataMatrix Frame Rate - 120FPS Indicator - Beeper / LED Voltage - DC 5V Scanning Current - 230 mA Standby Current - 220 mA Operating Temperature - -20℃ to 50℃ Storage Temperature - -40℃ to 70℃ Operating Humidity - 10% - 95% RH (Non-condensing) Storage Humidity - 10% - 95% RH (Non-condensing) Drop - 1.8 M drops Light Level - 100,000 lux Weight - 216g w/o cable Dimension - 103.34mm (L) x 80mm (W) x 63.31mm (H) Housing Material - ABS plastic / Window - Tempered glass Cable - Length: 5ft (150cm) / USB Type A Warranty - 1 year Certificate - FCC / CE / UKCA / VCCI / BSMI
