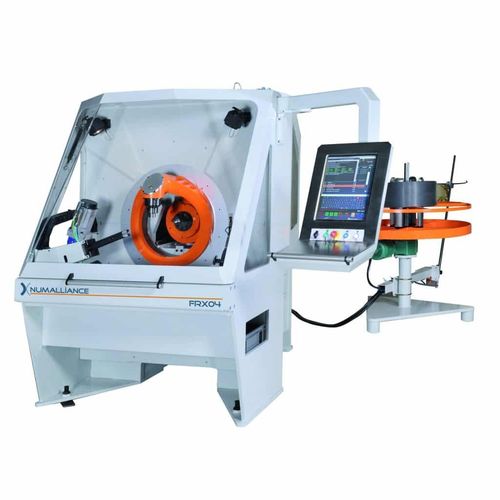

Electric bending machine FRX04for wiresCNCforming
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- for wires
- Control
- CNC
- Associated function
- forming
- Other characteristics
- 3D, multi-axis
- Bending capacity
Min.: 1 mm
(0.04 in)Max.: 6 mm
(0.24 in)
Description
Wire Forms, Compression, Torsion and Extension spring
3D bending from coil
Multifaceted tool also for complex parts (multi-axis interpolation)
Production of small to medium size quantities
Quick production changeover
Robotized bending arm with unlimited rotation around wire to avoid torsional stress
Optional – coiling detection system
Man / Machine Interface
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
