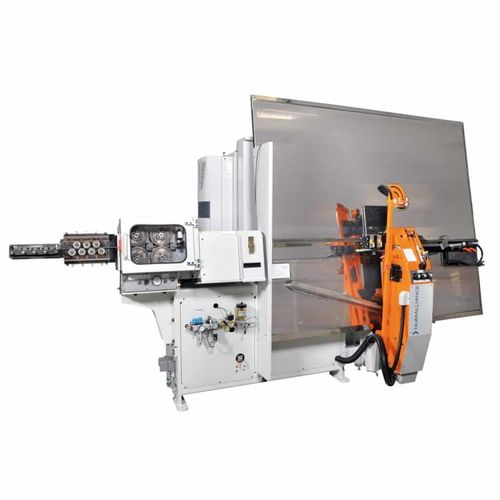

Electric bending machine F2Dfor wiresCNCforming
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Product handled
- for wires
- Control
- CNC
- Associated function
- forming
- Bending capacity
Max.: 12 mm
(0.47 in)Min.: 3 mm
(0.12 in)
Description
Wire
2D bending from coil
Production of welded frames up to 31 x 31″
Small to medium quantities
Table holds the wire in case of forming long parts
Welding parameters programed and saved with the part program
Optional Pick & Place for orderly ejection of the frame
Man / Machine Interface
Industrial-Grade PC powered by proprietary software
Multilingual dialog and programming interface on a 19″ touch screen
Simulation program
Additional I/O
Internet connection : remote assistance and chat room
Auto-corrective feedback from 3D-measuring devices
Tool editor allows programming of complex parts
Simulation tool to facilitate part set-up
Program execution in slow motion
