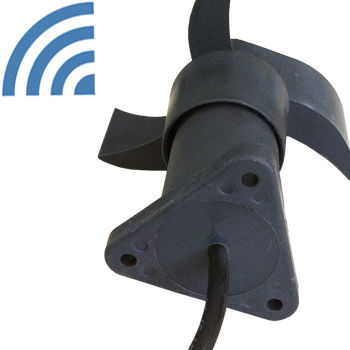

Vane anemometer ANEMO4403-RF-BAT

radio

Radio impulsive output Anemometer Wireless Robust wind speed sensor, extremely resistant and flexible, Suitable for many different application. Stainless steel bearings and high quality technical plastic body and cups. The RF communication compliant to IEEE 802.15.4 standards, operating within the ISM 2.4 GHz frequency band. Totally Plug & Play system, no configuration needed. More than one equipment can operate in the same enviroment, no risk of interaction/interference. The Anemo4403 RF, is suitable to be used for any application where it is necessary to accurately detect the wind speed such as: tower cranes, solar panels, greenhouses, wind generators, etc. but needs quick mounting and wireless system. Mechanical Features The anemometer is constituted by a rotor in shockproof plastic material resistant to UV rays, at low temperatures and hail. Rotating on ball bearings, drives a magnetic contact generating 4 pulses per revolution. - Degree of protection IP65 - Operating temperature -20° + 80°C without ice - Storage temperature -40° + 100°C - Overall size shown in the drawing on the side - Weight 154 g - Measuring range from 2 to 200 km/h - Accuracy ± 2% - Linearity ± 2% Electrical Features - Power supply 9-24 Vcc - Max. Input current 100mA max - Measuringr Range 2-200 km/H - Power supply 3-5 Vdc through lithium battery "D" size 3,6 Vdc - Battery life 1 year with 7,2 Ah model - 2/3 years with 19 Ah model - Consumption 100 mA max - RF signal radio trasmission frequency 2,4 GHz - RF signal power radio transmision 10 mW - Connection V+:red / V-:black / NC:yellow - Operating distance 60/100 meters indoor or urban area
