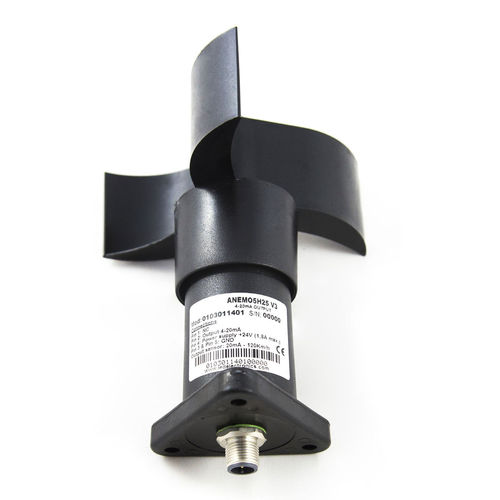

Vane anemometer ANEMO5H25

frequency outputheated

Wind speed measure anemometer for low temperature and ice The heating system of which the device is fitted, ensure the normal operation and even in the presence of snow and ice. The ANEMO5H25, can detect the wind speed even under extreme climatic conditions. The integrated heating system, in fact, prevents the formation of snow and ice deposits on top of the appliance, ensuring the smooth operation up to a minimum of temperature equal to -25 ° C. Also for this reason, it is the optimal solution for all those applications relating to the wind speed detection in extreme conditions. Easy to use and small size, is particularly suited to be employed as a transducer for our WM44-P control unit. However, thanks to its great versatility, it is easily adaptable to a wide range of instruments for the visualization and control. It can be connected directly to PLC and / or market electronic, tachometers and WM44P as the model of our product range. Mechanical Features - Material PA + FV - Bearings stainless steel X65Cr13 - Type of connection connector M12 - Weight 150g - Dimensions shown in the following drawing - Storage temperature -35°C+80°C - Working temperature -20°C+60°C - Accuracy +-3% - Linearity +-3%
