Anemoscope ANTC-D2.2 series

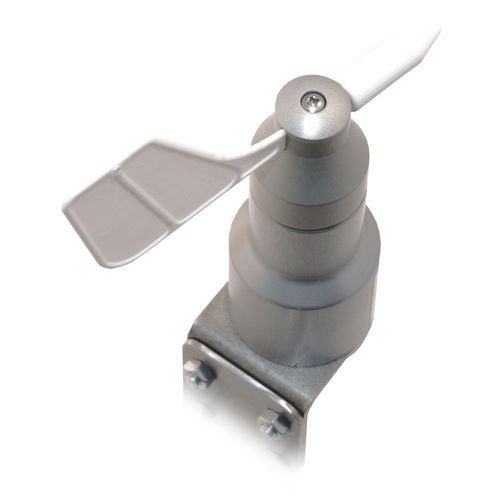

Anemoscope with wing direction and analog output for industrial applications The series ANTC-D2.2 has been designed and built for industrial applications, in particular: - Transcriptions for Wind Turbine - Data loggers historical analysis - Control thresholds for wind and solar sails solar trackers However, it is used in any area where they are necessary features of reliable, robust and accurate. The body of the rotor is machined aluminum. The head rotates on ball bearings. The direction wing is in nylon fiber shock-absorbent and easily interchangeable. It 'also has a connector for convenient connection. Each transducer is tested in a wind tunnel equipped with a calibration certificate. Mechanical Features - Anodized aluminum rotating transducer mounted on double ball bearing complete with stainless steel bracket and female socket connector - Assembled by ± 3° from vertical axes. Vane upwards - Analogic signal output - Measurement range from 1° to 360° - Operating temperature from -10°C to +60°C - Storage temperature da -30°C a +80°C - Nylon string wing hail resistant from -40°C to +120°C - Interchangeable wing (1+1 wing in every kit) - Male connector 3 poles to be weld Electrical Features - Power Supply: 10 - 30 Vdc - Nominal Current from 15mA to 1,5mA - Output signal tension proportional from 0,51 to 4,50 Vcc complete revolution 360° Dimensions - Body rotor: H 122 mm - Body rotor + support: H 147 mm - Body rotor + support + connector: H 170 mm - Diam. min. top body rotor: 29 mm - Diam. max. bottom body rotor: 39 mm - Diam. max. rotating head with wind vane assembled: 115 mm - Stainless steel support assembled. Dimensions: H 42 mm / W 39 mm
