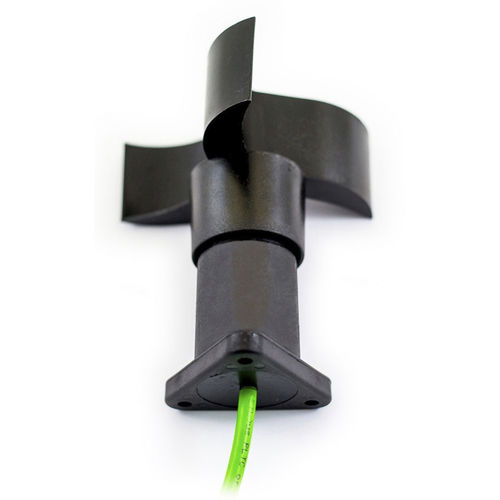

Vane anemometer ANEMO4403

ModbusRS-485

Plastic Rotating Anemometer with Reed contact ANEMO4403 V3 DIGITAL OUTPUT is a digital output anemometer, has been designed to be used in industrial applications: - cranes - solar panels - wind turbines - weather stations - greenhouses - irrigation systems Mechanical Features The anemometer consists of a plastic rotor impact-resistant and to UV rays, at low temperatures and hail. Rotating on ball bearings, drives a magnetic contact, generating 4 pulses per revolution. - Material PA+FV - Bearings Stainless steel X65Cr13 - Connection type 20m cable (4x0,65 mm2) - Weight 160g (without cable) - Storage temperature -35°C +80°C - Working Temperature -20°C +70°C Electrical Features Up to 180 km/h of wind speed. Output is a RS485 MODBUS RTU communication. The wind sensor must be fixed on a vertical position. - Power supply 9-30Vdc - Maximum current 100mA - Output RS485 - Range 3-180 Km/h - Starting speed 8 Km/h - Survival speed 200 Km/h - Accuracy 1 Km/h (3-15 Km/h) 3% (15-180 Km/h) Regulations Protection: - IP65 UNE20324:1993 EMC: - EN 61000-6-2:2001 - EN 55022:2001, CLASS B Stainless Steel Bracket The stainless steel bracket is an optional item. The simple shape simplifies the installation and anchor of anemometer. Open Slot At the bottom, an open slot facilitates the pre-wired for cable entry.
