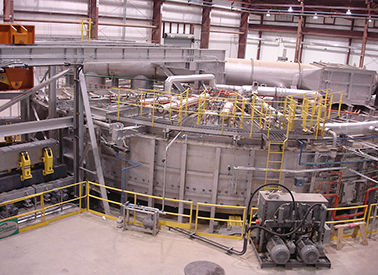

Rotary furnace

quenchingcontinuous

In many cases these furnaces are integrated with load/unload manipulators to feed forging cells, forming lines, or quenching systems. Much of the ancillary equipment can be supplied by Nutec Bickley with our rotary furnaces. Rotary Hearth Furnaces offer several advantages for the continuous heating and heat treatment of Steel, Iron and Titanium. The Rotary Hearth Furnace concept can also be provided with forced air heating and recirculation for metals such as aluminum that are heat treated or pre-heated in a forging application. At Nutec Bickley we provide a wide range of Rotary Hearth Furnace sizes from 5’-0 to 60’-0 diameter with a full hearth or as a Rotary Ring as batch heating (filled once then unloaded) or continuous to match our customers specific needs an process requirements. In many cases these furnaces are integrated with load and unload Robots or custom manipulators to feed forging cells, forming lines, or quenching systems. Nutec Bickley offers Turn Key integrated solutions. The flexibility of the Rotary Hearth Furnace design allows for side firing or heating with flat flame style burners mounted in the roof or both if required. Higher temperature furnaces incorporate Low NOx, Recuperative and Regenerative burner technologies. The furnaces can be arranged with one door for loading and unloading or with designated loading and unloading doors as required. All Nutec Hearth Furnaces are designed with ease of user maintenance and incorporate schemes modular panel sections, precast hearth shapes and removable wall/roof sections for maintenance access.
