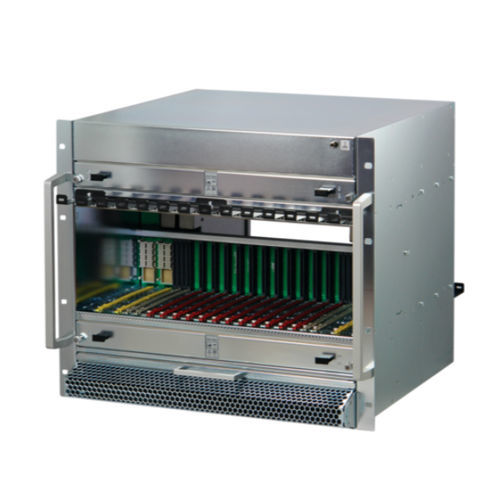

Rack-mount MicroTCA platform 11850-026

In accordance with PICMG MTCA.4 R1.0 specification 9 U, 84 HP system for 12 Double Mid-Size AdvancedMC modules, 2 Double Full-Size MCHs, and 4 Double Full-Size power modules 12 rear transition module slots for Double Mid-Size RTMs Backplane with dual star topology, direct connections for S-ATA / SAS, clock and trigger lines per PICMG MTCA.4 Telecom and fabric clock topology per PICMG AMC.0 R2.0 2 hot-swap fan modules with cooling unit manager (CU EMMC), airflow from bottom front to top rear Optionally fan speeds for front and rear sections can be separately adjusted via the MCH PRODUCT ATTRIBUTES Product Type: System Number of Slots: 12 Backplane Type: MTCA.4 Dual Star Topology Data Transfer: 40 GbE; PCIe Gen3 Power per Slot: 80 W Airflow Direction: Front to Rear Rack Height: 9 U Power Supply Type: (4) Double Full-size PM Power Supply Included: No Rear I/O: Yes Complies With: PICMG MTCA.4 R1.0 Depth: 373.3 mm Height: 400.05 mm ADDITIONAL PRODUCT DETAILS The system is designed for high-performance applications with a high level of availability, where redundancy of all components is required. The two redundant hot-swap fan modules with EMMC in push-pull configuration ensure that the front and rear slots are properly cooled. The fan speed is controlled independently for front and rear and is set via the MCH. Cable trays on the front and rear of the enclosure simplify cable management. The system can take up to four power modules to ensure a sufficient power supply for the application. The backplane features clock and trigger lines per PICMG MTCA.4, as well as interlocks. It also provides direct connections for SAS/SATA and lines between the AMCs
