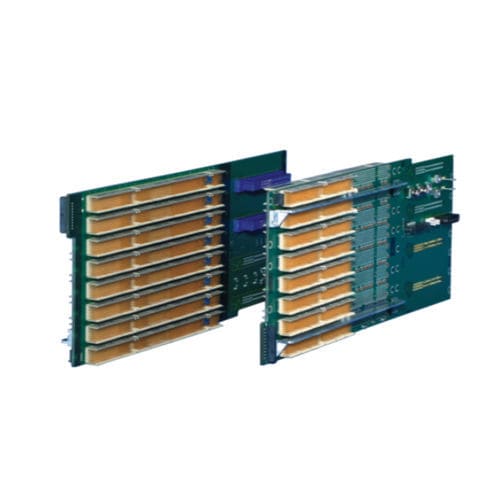

CompactPCI backplane 23006-792

PICMGATX1-5 slots

Digital GND can be connected to/isolated from chassis GND by means of screws V(I/O) can be set to +3.3 V or +5 V Outer layers act as GND surfaces Utility plug for status signals (SMCQ) Outstanding high frequency noise suppression and very high MTBF values due to ceramic capacitors PRODUCT ATTRIBUTES Rack Height: 7 U System Slot: Left Slot Width: 4 HP Voltage I/O: 5 V Connector Type: HM 2.0 Width: 39.64 mm ADDITIONAL PRODUCT DETAILS The nVent SCHROFF CompactPCI Backplanes have best in class signal integrity and MTBF values due to SMD components, ceramics capacitors and press fit connectors. Other configurations available on request.
