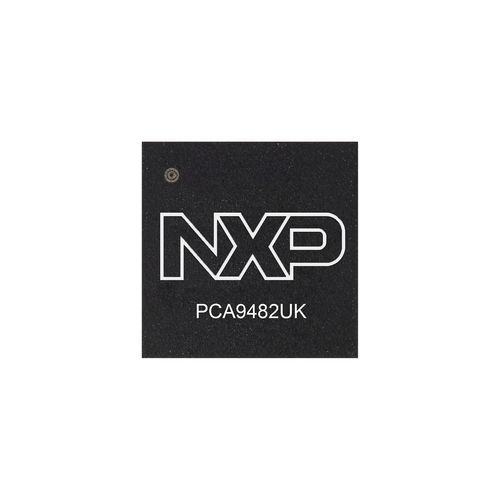

Battery charger controller PCA9482

The PCA9482UK is a highly-integrated switched-capacitor converter with an embedded OVPFET, targeted to provide two times the output current for fast charging applications with a 1-cell battery. The device works in 2:1 switching operation with very high efficiency (> 96.5%, at VVOUT = 4 V, IVOUT = 5 A), in 1:2 switching operation or in 1:1 mode with forward and reverse direction. The chip is offered in 3.02 mm x 2.72 mm, 6 x 7 bumps, 0.4mm pitch WLCSP package. Features Key Features Dual phase switched capacitor for single cell battery Multiple operation mode: 2:1, 1:2, forward and reverse 1:1 5 V to 10.2 V input voltage Max. 7 A output current Integrate OVP FET for protection and regulation Performance > 96.5% efficiency at 5 A Protections Over-voltage protection Under-voltage protection Thermal shutdown Short protection at OVP_OUT and flying capacitor during start-up Over-current and reverse-current protection Watchdog timer Others Leader and Follower for parallel charging 8 channels 12-bit ADC 1 Mbit/s I2C-bus target interface Applications Mobile Portable Electronic Devices with High-Voltage Direct Charging Smartphone Tablet
