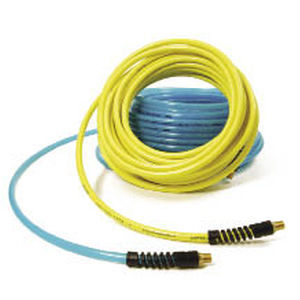

Air hose Ultra-Lite SuperBraid®
thermoplasticpolyurethanepolyester

air hose
air hose
Add to favorites
Compare this product


Characteristics

Use
for air
Material
thermoplastic, polyurethane, polyester
Other characteristics
flexible, lightweight
Inner diameter

Max.: 12 mm
(0.472 in)

Min.: 6.35 mm
(0.25 in)

Outer diameter

Max.: 13 mm
(0.512 in)

Min.: 9.5 mm
(0.374 in)

Pressure

Max.: 15 bar
(217.557 psi)

Min.: 12.7 bar
(184.198 psi)

Temperature

Max.: 74 °C
(165.2 °F)

Min.: -40 °C
(-40 °F)

Description

Ultra-Lite Superbraid® Hose is very lightweight. Our 3/8" x 50´ hose assembly (the most popular size) is more than 20% lighter than similar hose assemblies from other manufacturers so it's easy to carry around, yet tough enough to resist the abuse of severe applications. Ultra-Lite Superbraid®'s extreme flexibility and ability to lay out flat without kinking or looping make it the most user-friendly hose available. It retains these characteristics even in cold environments (down to -40° F). Ultra-Lite Superbraid® features rugged fittings made from corrosion resistant brass that will withstand the roughest treatment. Our state-of-the-art strain relief protects the hose at its weakest point (at the barb) while enhancing the appearance of the entire assembly. Features 29% lighter weight than equivalent thermoplastic products and 63% less than equivalent rubber air hoses State-of-the-art strain relief system allows the hose to bend freely without kinking at the fitting Quick in-the-field repairs can be made with commercially available hose barbs and clamps - no special kits are needed Effortlessly lays out flat and coils into a loop, even in sub-zero temperatures Extremely tough and abrasion resistantSuper flexible - 100% kink proof Specifications Temperature Range: -40°F to +165°F (-40°C to +74°C) Outer Cover: 85 Durometer Polyurethane Inner Braiding: Polyester Strain Relief Sleeves: Engineered Thermoplastic Standard Colors: Yellow or Transparent Blue

Catalogs
