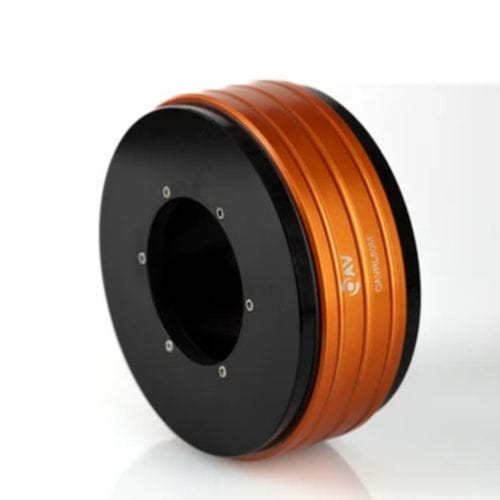

Radial bearing unit OAVRL50Maxialfixedair cushion
Add to favorites
Compare this product
Characteristics
- Type
- radial, axial, fixed, air cushion
- Rolling element
- roller
- Material
- aluminum
- Other characteristics
- housed, high-performance, high-speed
- Inside diameter
50 mm
(1.97 in)- Outside diameter
110 mm
(4.33 in)
Description
Frictionless OAV ® Roller Air Bearing. Ultra-precise, hard-installable, and fixed location.
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Side Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Porous Material - Carbon
Input Pressure - 40 psi - 100 max psi
Pressure Port Threads - M5 x 0.8
Lifetime - Infinite
Radial Max Load - 311.8 N (70.1 lbs)
Axial Load Max - 778.4 N (175.0 lbs)
Total Indicated Runout (TIR) - ± 1 millionths in (.025 µm)
Axial and Radial Error Motion - 1.1 μin/(0.027 µm)
Bearing Width - 44.5 mm
Weight - 1.7 lbs
Shaft Diameter - 50 mm
Housing Bore size Light Press Fit Method - 109.98 mm + .02/-.00
Flow rate - 39.3 SCFH
