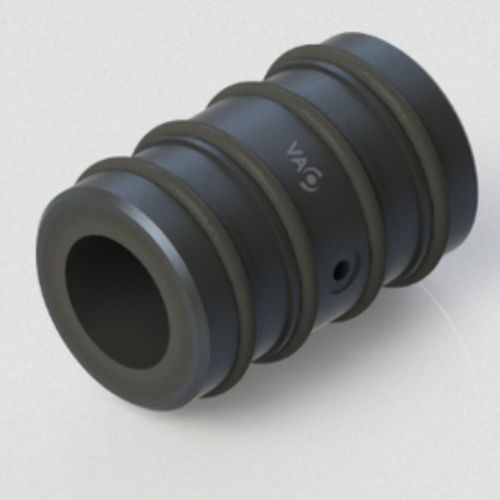

Radial plain bearing OAV0750IBlinearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- aluminum
- Applications
- for linear systems, for spindles
- Inside diameter
0.75 in
- Length
2 in
Description
Used in spindle and linear applications. Made with 7075 aircraft quality aluminum housing.
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input Pressure - 40 psi - 100 max psi
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Radial Load Max - 34.4 lbs (153.0 N)
Radial Stiffness - 0.13 lbs/μin (23 N/μm)
Pitch Moment Max - 10 lbs-in (1.1 N-m)
Bushing Inside Diameter (ID) - 0.7507 in + .0002/-.0000
Bushing Outside Diameter (OD) - 1.250 in + .005/-.000
Bushing Weight - 51.6 g
Recommended Shaft Outside Diameter (OD) - 0.7500 in + .0000/-.0007 (g6)
Flow Rate - 8.98 SCFH
Housing Bore Size O-ring Method - 1.265 in + .000/-.005
Housing Bore Light Press Fit Method - 1.251 in + .000/-.001
