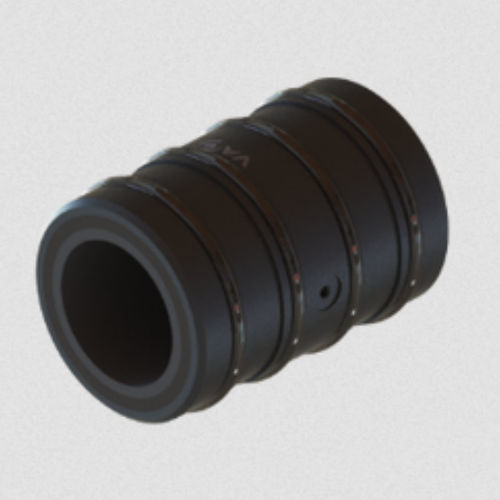

Radial plain bearing OAV1000IBlinearair cushionaluminum
Add to favorites
Compare this product
Characteristics
- Type
- radial, linear, air cushion
- Material
- carbon, aluminum
- Applications
- for linear systems, for spindles
- Inside diameter
1 in
- Length
2.25 in
Description
Used in spindle and linear applications. Made with 7075 aircraft quality aluminum housing.
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Input PRessure - 40 psi - 100 max psi
Porous Material - Carbon
Pressure Port Threads - M3 x 0.5
Lifetime - Infinite
Radial Load Max - 51.6 lbs (229.5 N)
Radial Stiffness - 0.19 lbs/μ in (34 N/μm)
Pitch Moment Max - 17 lbs-in (1.9 N-m)
Bushing Weight - 79.5 g
Recommended Shaft Outside Diameter (OD) - 1.0000 in + .0000/-.0007 (g6)
Flow Rate - 11.97 SCFH
Housing Bore Size O-ring Method - 1.547 in + .000/-.005
Housing Bore Size Light Press Fit Method - 1.533 in + .000/-.001
