Slide linear guide BOX

air bearingprecisiondovetail

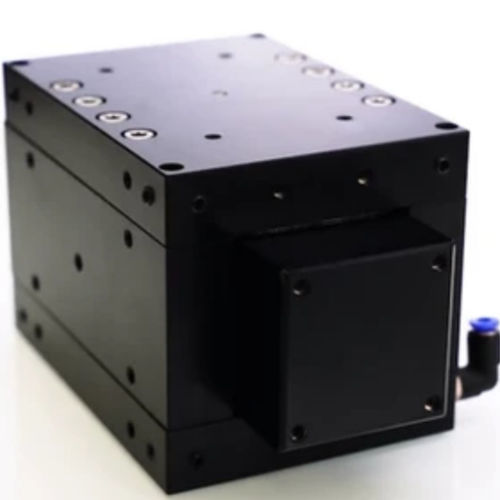

OAV Profile Box-series Rail Guides manufactured from Aircraft Quality lightweight Material, Ultra precise linear straightness and flatness vibration-free, maintenance-free motion.Ready to install, Integrated locking brake function, through pretensioning of the air bearing, for ultimate accuracy positioning Local Straightness .25 µm per 25 mm travel Maximum error 2 µm per 1000 mm travel Flatness .0005 mm or .00002 in Carriage Size 80 mm x 80 mm and 75 mm length Travel 50 mm/100 mm/200 mm/300 mm or Custom Travel Guidebar Size 40 mm x 40 mm Assembly Height 80 mm Carriage Weight .86 kg (1.89 lb) Total Weight 2.8 kg (6.1 lb) (100 mm travel) Guide Bar length Custom Air Flow 4.6 nlpm Pitch 78 N-m Roll 78 N-m Yaw 78 N-m Y Stiffness 183 N/μ Z Stiffness 183 N/μ
