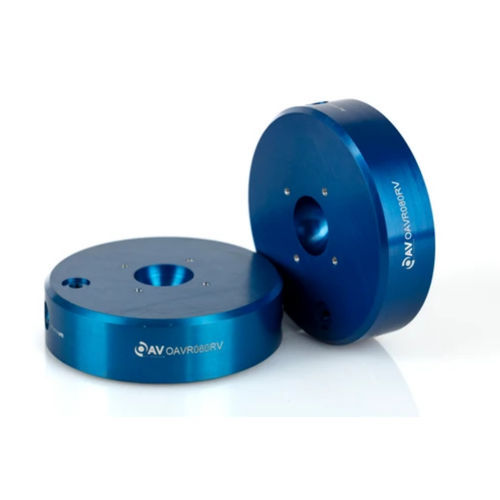

Flat bearing unit OAVR080RVair cushionaluminumhoused
Add to favorites
Compare this product
Characteristics
- Type
- flat, air cushion
- Material
- aluminum
- Other characteristics
- housed, vacuum pre-loaded
- Outside diameter
80 mm
(3.15 in)
Description
frictionless OAV Flat Round Vacuum Preloaded Air Bearing.
Input Pressure - 0.28 to 0.68 MPa (40 to 100 PSI)
Input Vacuum - 15 in Hg
Ideal Load - 113 N (25.3 lbs)
Stiffness - 30 N/μ (0.17 lbs/μin)
Flow Rate - 1.3 NLPM (2.8 SCFH)
Fly Height - 5 μ
Bearing Size - 80 mm
Bearing Height - 22 mm
Bearing Weight - 253 g
Housing Material/Finish - 7075 Aircraft Quality Aluminum/ Mil Spec Hard Anodize
Porous Media Material - Carbon
Flatness - 0.001 mm (0.00004 in)
Pressure Port Thread - M5 x 0.8
Vacuum Port Thread - M5 x 0.8
